SMT Line 4

1. DEK Visual Automatic Tin Printing Machine
2. SONY SI-F130WK Placing Machine
3. SONY SI-E2000MK II  Placing Machine
4. JUKI KE-2060M Multifunctional Machine
5. ETC AC08M-8 Lead-free Reflow Oven

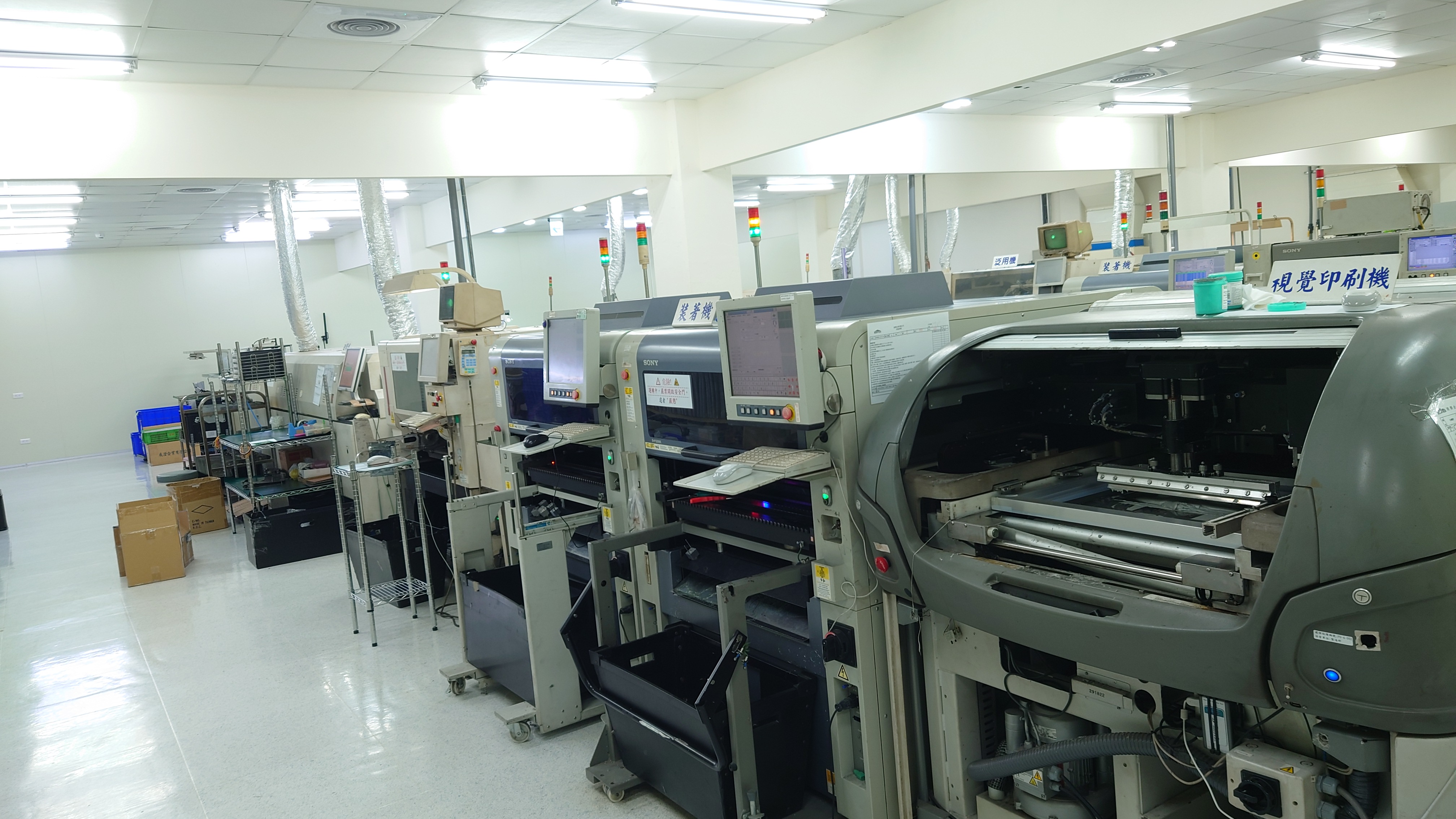

SMT Line 4: Production Line and Equipment

This line consists of a tin printing machine,
Two placing machines, a multifunctional machine,
and a reflow oven.

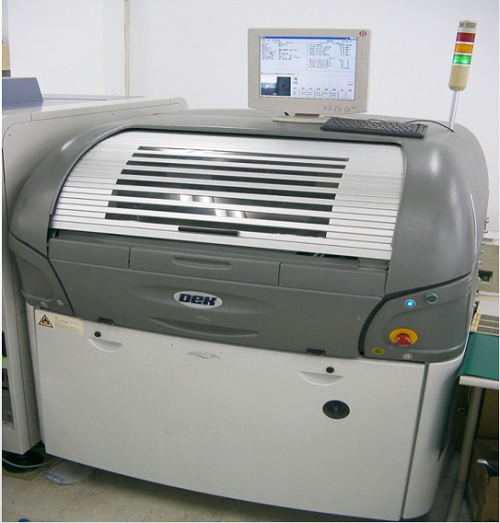

DEK tin printing machine
Printing accuracy: 0.01 mm

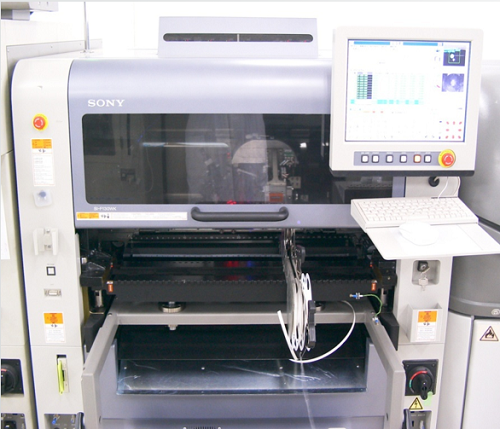

SONY SI-F130WK Placing Machine
Part size: 01005~12mm
Speed: 0.139 sec/point, 25890 points/hr


SONY SI-E2000MK II  Placing Machine
Part size: 0201~12mm
Speed: 0.22 sec/point, 18000 points/hr

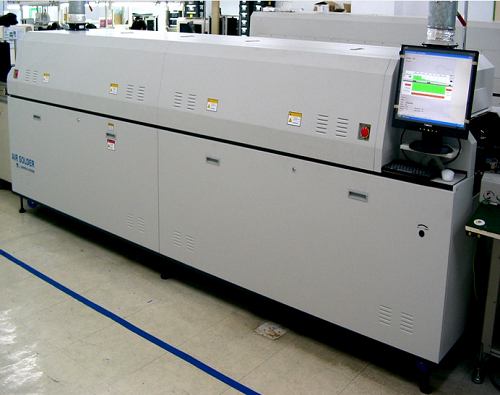

ETC  AIS-20-82C Non-lead Reflow Oven
8 sections - 16 up and down temperature control areas.

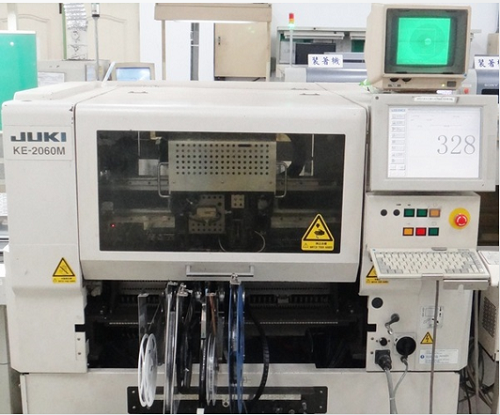

JUKI KE-2060M Multifunctional Machine
Part size: 0402~33.5mm
Speed: 0.288 sec/point
